TCzTRZ, high purity TADF sky blue emitter
Paired with the donor DMAC-DPS, the device can achieve high PLQY and quantum efficiency
TCzTRZ - 9,9',9''-(5-(4,6-Diphenyl-1,3,5-triazin-2-yl)benzene-1,2,3-triyl) tris(9H-carbazole) is a TADF sky blue emitter with an electron deficient triphenyltriazine and three electron donating carbazole moieties. It has been suggested that having more carbazole donors present in the emitter helps to reduce the singlet–triplet energy gap ΔEST, i.e. the additional carbazole moiety in TCzTrz lowers the ΔEST by 0.09 eV while compared with .
Blue emitting as donor and TCzTrz as acceptor can form highly efficient exciplex, resulting in high and high quantum efficiency in the green exciplex organic light-emitting diodes.
General Information
| CAS number | 1808158-40-8 |
|---|---|
| Full name | 9,9',9''-(5-(4,6-Diphenyl-1,3,5-triazin-2-yl)benzene-1,2,3-triyl) tris(9H-carbazole) |
| Chemical formula | C57H36N6 |
| Molecular weight | 804.94 g/mol |
| Absorption | λmax 377 nm (in toluene) |
| Phosphorescene | λmax 477 nm (in toluene) |
| HOMO/LUMO | HOMO 5.40 eV, LUMO 2.18 eV [1] |
| Synonyms | TCz-TRZ |
| Classification / Family | Triazine derivatives, Light-emitting diodes, Organic electronics, TADF blue emitter, PHOLEDs host materials, Sublimed materials. |
Product Details
| Purity | Sublimed >99.0% (HPLC) |
|---|---|
| Melting point | Tg = 188.7 ℃, Tm = 381.5 ℃, Td (Temperature at 5% weight loss) = 431.8 ℃. |
| Appearance | Pale yellow powder/crystals |
*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the .

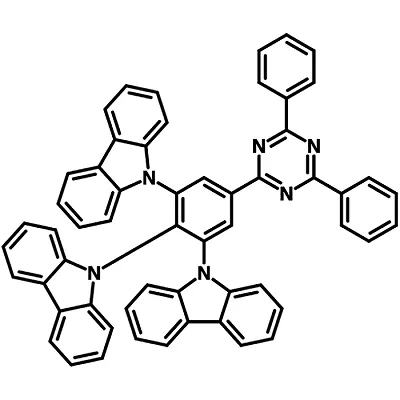

Chemical Structure
Device Structure(s)
| Device structure | ITO/PEDOT:PSS/TAPC/mCP/40 wt% TCzTRZ:DPEPO/TSPO1/TPBI/LiF/Al [1] |
|---|---|
| Colour | Blue |
| Max. Power Efficiency | 42.7 lm W-1 |
| Max. EQE | 25% |
| Device structure | ITO (50 nm)/HATCN (7 nm)/TAPC (30 nm)/TCTA (20 nm)/mCP (10 nm)/DBFPO:40 wt% TCzTRZ (25 nm)/TSPO1 (5 nm)/TPBi (25 nm)/LiF (1.5 nm)/Al (100 nm) [3] |
|---|---|
| Colour | Blue |
| Max Current Efficiency | 34.1 cd/A |
| Max. Power Efficiency | 30.6 lm W-1 |
| Max. EQE | 19.8% |
*For chemical structure information, please refer to the cited references.
Pricing
| Grade | Order Code | Quantity | Price |
|---|---|---|---|
| Sublimed (>99.0% purity) | M2332A1 | 100 mg | [[price gbp="230"]] |
| Sublimed (>99.0% purity) | M2332A1 | 250 mg | [[price gbp="460"]] |
| Sublimed (>99.0% purity) | M2332A1 | 500 mg | [[price gbp="800"]] |
| Sublimed (>99.0% purity) | M2332A1 | 1 g | [[price gbp="1280"]] |
MSDS Documentation
Literature and Reviews
- Design Strategy for 25% External Quantum Efficiency in Green and Blue Thermally Activated Delayed Fluorescent Devices, D. Lee et al., Adv. Mater., 27 (39); 5861-5867 (2015); DOI: 10.1002/adma.201502053.
- Highly efficient exciplex organic light-emitting diodes using thermally activated delayed fluorescent emitters as donor and acceptor materials, S. Jeon et al., Nanotechnology, 27 (22), 224001 (2016); DOI: 10.1088/0957-4484/27/22/224001.
- Controlling the exciton lifetime of blue thermally activated delayed fluorescence emitters using a heteroatom-containing pyridoindole donor moiety, G. Kim et al., Mater. Horiz., 4, 619-624 (2017); DOI: 10.1039/C6MH00579A.
